Desktop Counter Intercom System (or Window intercom system) DUPLEXCOM 1DC1203  with high quality gooseneck microphone and loudspeaker is used wherever physical barriers for communication need to be passed. It fulfils the widest variety of requirements – from any type of  counters to different solutions in banks, hospitals, reception areas, money dispensing counters, ski-lift stations, pay-booths. The equipment is extra suitable for post office counters, railway stations terminals, bus terminals, porter's lodges, etc.

Applications and Advantages:

• Communication between acoustically separated spaces by glass or wall bariers (counters of  banks, bus & railway station terminals, ticket counters, post office counters,  information counters, reception areas, etc.)
• Protection against permanent noise, dirty areas in many applications in industrial sites
• Protection agains different temperature zones and rough weather conditions, as the counters at ski-lift stations
• Passport control &  Embassies
• Places of public entertainment - Theatres, Cinemas and Sports Grounds

• Speaking and listening in both directions (duplex mode)
• Excellent speech intelligibility, even under the most difficult acoustic conditions
• Quick and easy installation
• High output volume (5 W)
• Microphone and Loudspeaker can be easily bonded to a flat surface
• Wall mounting box for surface mounting possible
• Suitable for any size of communication hatch
• Separate volume control for each side of the counter (for outdoor area internal adjustment by installation)
• Possibility to listen to the customer zone although when the desktop microphone is switched off
• Two operating modes for speaking to outdoor are:
  - latch operation ("hands-free")
  - momentary operation

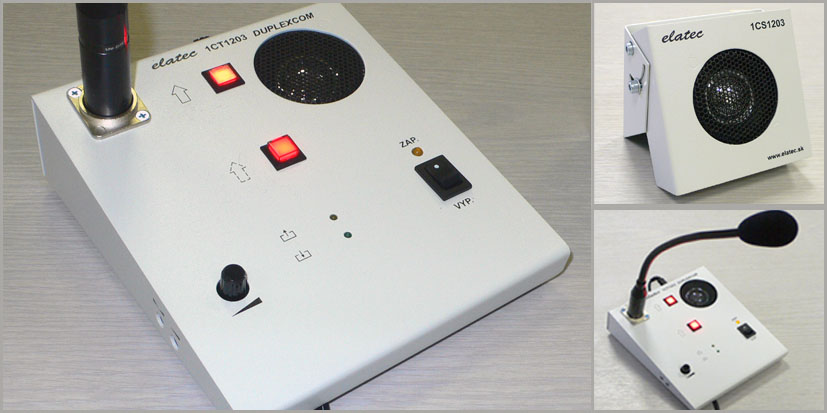

Both parts of the Counter Intercom System 1DC1203  (Desktop terminal & Loudspeaker) have been built in massive steel case, shock proof, crash-proof system against rough handling.

Package includes:

1. Desktop communication terminal 1CT1203 with gooseneck microphone (delivered in two different lengths)
2. Microphone for the outside area (customer / visitor zone) in special aluminium case with 2 m cable (3m cable on request)
3. Loudspeaker 1CS1203
4. Ac adapter 230V/50Hz

Ref:

1. Železnice Slovenskej Republiky (Slovak Railways)  - more than 140 pcs   (whole teritory of Slovak republic - Winner of Tender; 2007, 2008, 2009)
2. České dráhy (Czech Railways) -  Luhačovice, Zlín, Valašské Meziřičí (2008), Czech republic
3. Main bus station Mlynské Nivy
4. Main bus station Zvonařka Brno, Czech republic
5. Sociálna poisťovňa Nové Zámky (Social Insurance Agancy in Nové Zámky) (2008)
6. 1.Tatranská a.s. - Štrbské Pleso (Ski-lift) (2008)
7. Public Library - Spišská Nová Ves (2008)
8. Slovak Centre of Scientific and Technical Information (SCSTI SR, 2008)
9. Slovak Post - Bratislava, Detva, Stará Ľubovňa, Hlohovec, Záhorská Bystrica - 35pcs (2008)
10. Stanica technickej kontroly STK - Nové Zámky (2009)
11. Main bus station Praha Florenc - 22pcs (2009), Czech republic
12. Bytový podnik Košice
13. Katastrálny úrad v Bratislave (Land Register Office) - 22pcs (2009)
14. Swimming Stadium Olomouc  (2010), Czech republic
15. HOPI Madunice (February, July 2010)
16. Katastrálny úrad Senec (July 2010)
17. Jimi CZ - Vyškov (September 2010)
18. Telspektrum - Olomouc (October 2010)
19. Pharmacy Kvačalová, Bratislava (December 2010)
20. Ski Centre Levoca (December 2010)
21. Municipal Police Malacky (March 2011) - with RECKORD modul for recording
22. SKS Blansko (May 2011)
23. Ústav jaderného výskumu Řež a.s. (July 2011 + November 2011)
24. IT com s.r.o. (August 2011)
25. CONA spol. s r.o. (September 2011)
26. ASTER, spol. s r. o. - Jičín  (September 2011), Czech republic
27. Office of Executor - JUDr.Pavel Halás (October 2011)
28. YETI s.r.o., ski-center SNOWLAND (November 2011)
29. National Cancer Institute (November 2011)

Counter Intercom System 1DC1203 has been made by elatec s.r.o. (including development, manufacturing)

User manual 1DC1203 -
